Product Description

Products Disply
Product Paramenters
Product size
435x92x165cm
Total power
 17.5Kw
Power supply voltage
380V/three-phase five-wire 50Hz

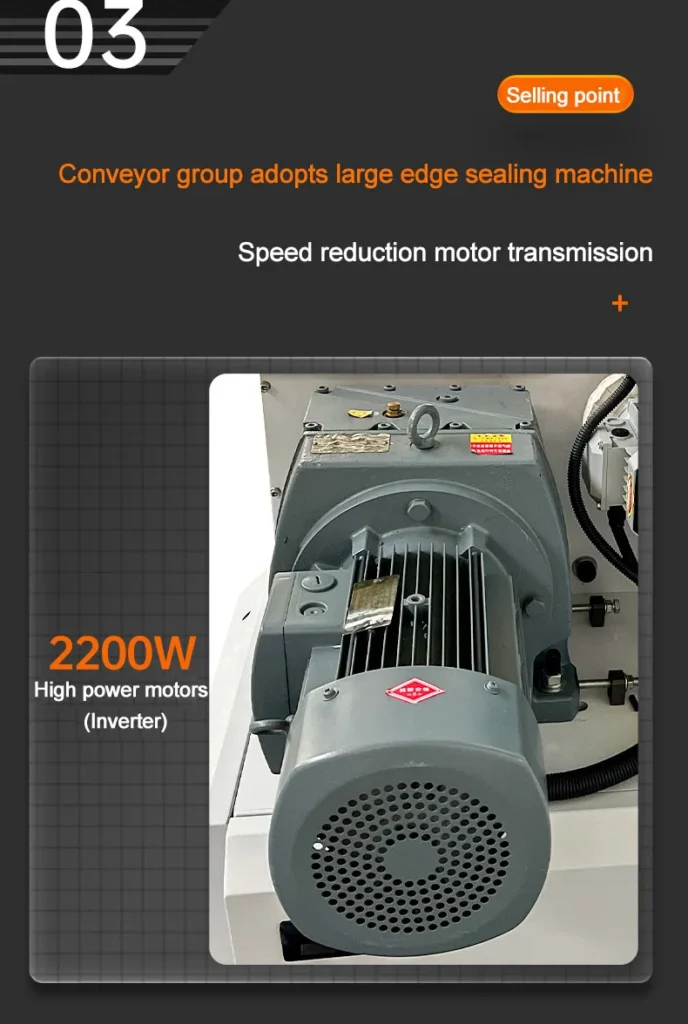

Conveying motor
 380V22Kw (frequency converter)
Air source pressure
 0.6mpa-0.8mpa
Lifting motor
380V025Kw (inverter)
External suction port
diameter 100mm
Polishing motor
380V370W (2)
Touch screen
Xinjie industrial touch screen
Selection motor
A 380V 4kw
Inverter
Xinjie Industrial Inverter

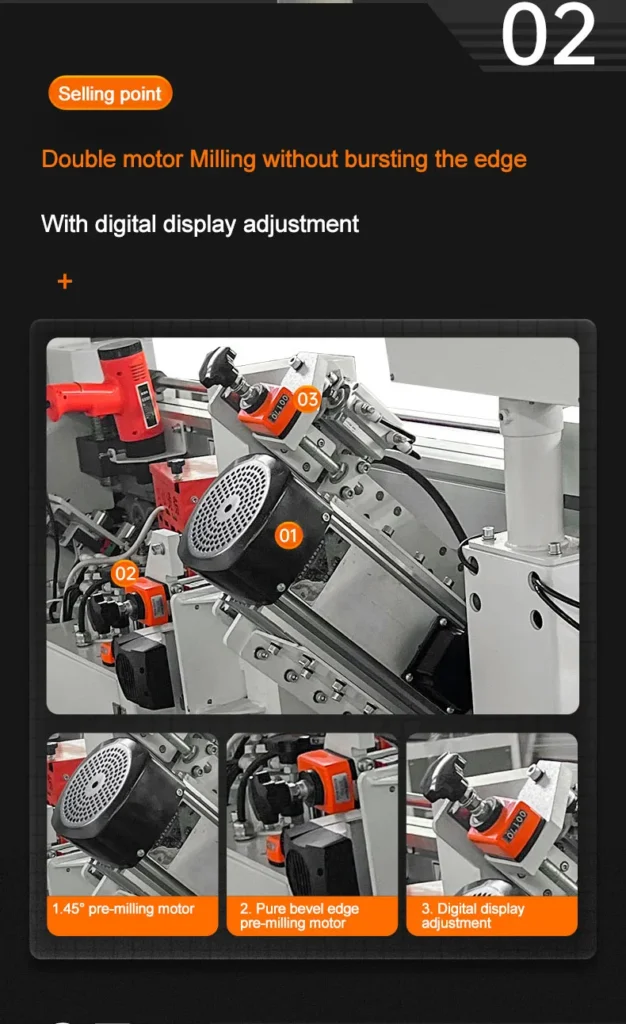

Milling motor B
380V35Kw
Glue pot use temperature
150-170??/DIV>
Edge strip width
28mm
The thickness of the edge banding
1.2mm (related to the material of the edge banding)
Air storage tank volume
5L
Trimming motor
380V0.75Kwx2
Qi head motor
380V0.37Kwx2
Sheet width
>100mm
Sheet length
>250mm
Type of edge banding
PVC
Glue pot heating
1.2KW
Heat gun
2KW
Edge motor
380V0.18KW (inverter)

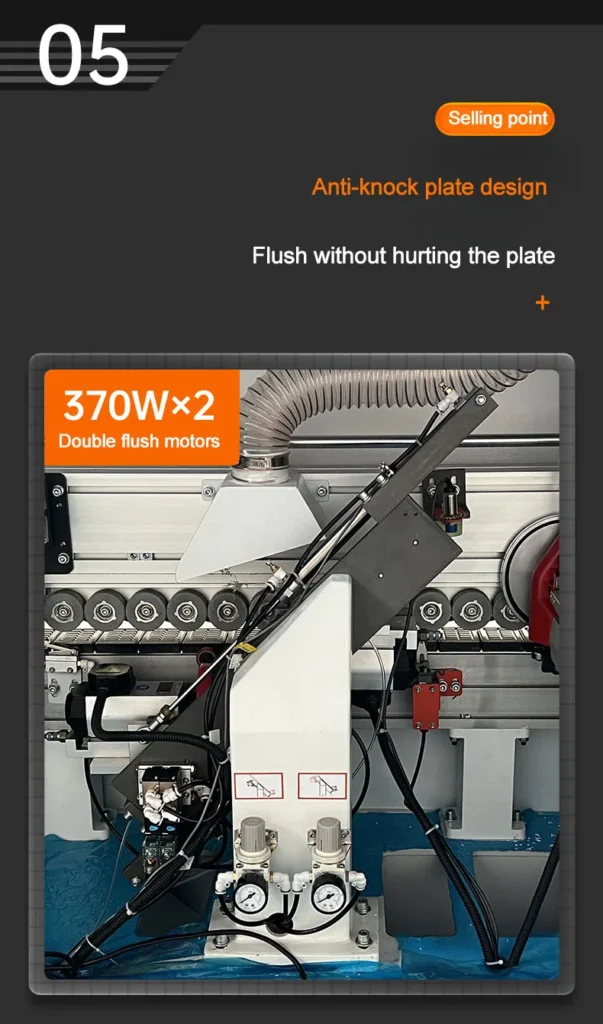

Polishing motor
380V0.37KWX2
Slotted motor
220V0.8KW
Edge banding sheet thickness
18/22/25MM
Edge speed
 0-12M/MIN (variable speed) (inclined straight edge)
Edge strip width
20-50MM
Glue pot capacity
2000ML
