Full Details

Product Description

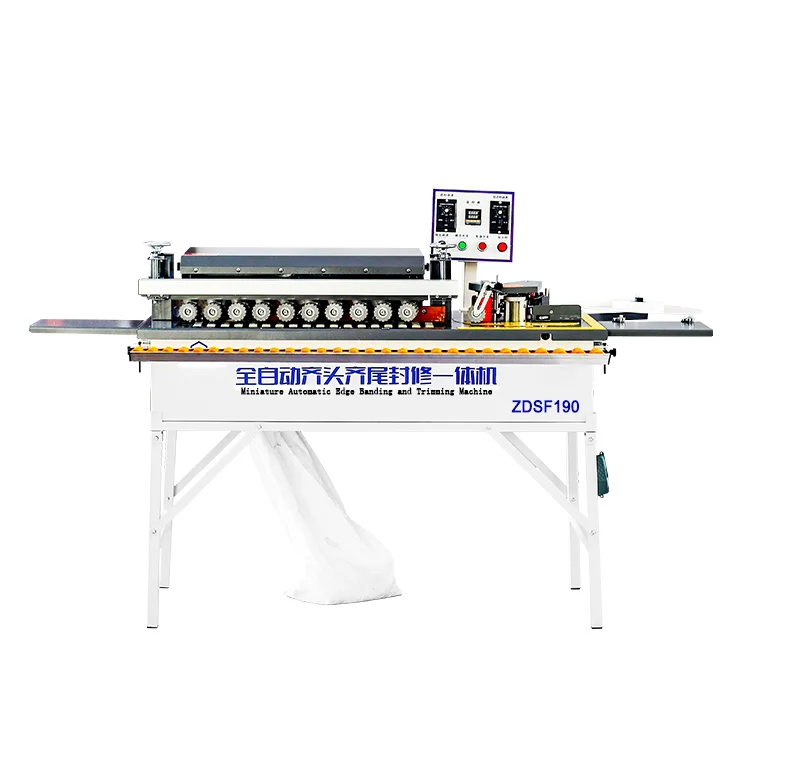

ZDSF190 Edge Banding Machine

The use of square slide rail realizes profiling and trimming. and the use of imported brand 4-blade alloy arc knife to trim the plate effect arc shape. automatic end cutting. use two big diameter dust collectors. close fit. collecting effect can reach 99%. For crawler transmission. we use steel rod slide rails. which is more stable in delivery. and the real materials can be seen!

Banding Effect

Specification

Model	ZDSF190 Edge Banding Machine
Function	Automatic plate feedingAutomatically break the belt Double-sided gluing Upper and lower trimming and polishing Curved and straight edgebanding Large diameter surrounding vacuum
Edge type	Both curved and straight lines
Voltage	220v50hz
Rated power	4kw
Rated air pressure	0.4-0.6mpa
Suction	1200w
Belt power	25w
Transmission power	120w
Heating power	800w
Polishing power	180w*2
Trimming power	800w*2
Conveyer belt	0-14m/min
Feed plate	0-14m/min
Sheet thickness	10-50mm
Strip thickness	0.5-2.5mm
Glue capacity	1000ml

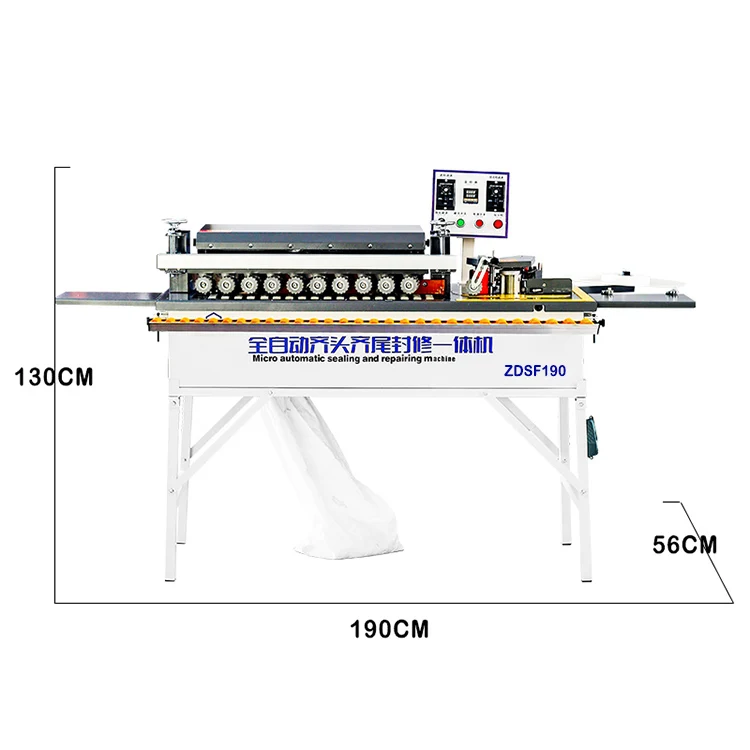

Overall size	19005601300mm
Packing size	1385864cm
Weight	105kg

Details Images

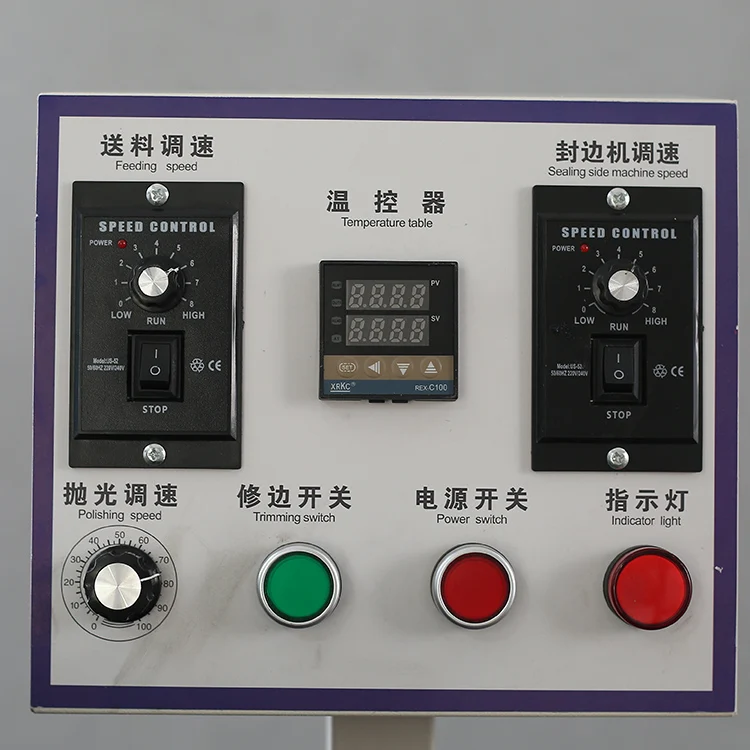

Control panel. multi-function button operation. save worry and effort.

The aluminum alloy pressure beam can be adjusted. and the plate conveying is more stable.

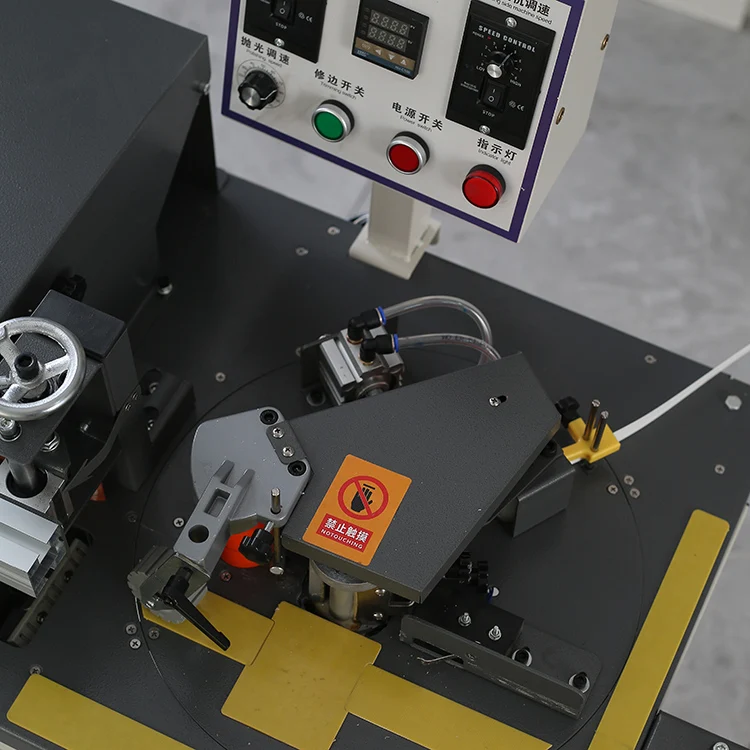

It can be used for straight edge banding. and can be used for curved edge banding after rotating 180 degrees. which is powerful.

Pneumatically controlled edge strip cutting device makes work easier.

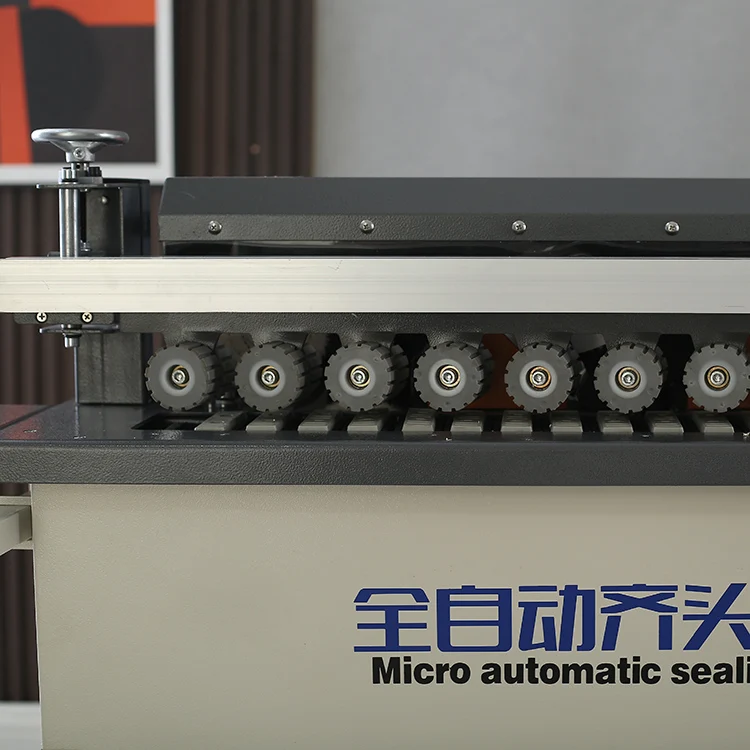

Double-row rubber pressure wheels. automatic plate feeding. large-size plates can also be transported stably.

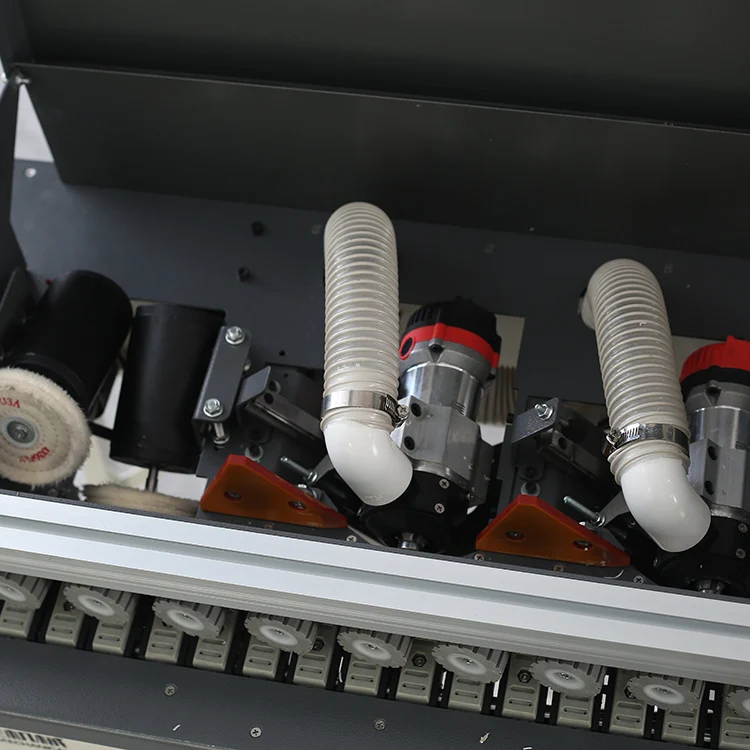

2 high-speed trimming motors. combined with a large-diameter vacuum device. trims the edges beautifully and cleanly.

Glue roller. adjustable glue volume.

Push-type limit switch. precise control.

Extended feed plate. more convenient to use.

4-edge arc-shaped alloy cutter head. the arc-shaped trimming is more beautiful.

Polishing device. cross polishing up and down

Comes with a tray for edge banding.
