Full Details

Product Description

Products Disply
Model
ZDS280
The main function
Gluing. End trimming. Fine trimming. Scraping. Buffing.Cleaning
Working pressure
0.65Mpa
Voltage
380V-3HP
Conveyor belt speed
9-12m/min
Power
9kw
Min. panel width
60mm
Min. panel length
120mm
Panel thickness
10-60mm
Edge thickness
0.3-3mm
Weight
890kg
Dimensions
2950*750*1250mm

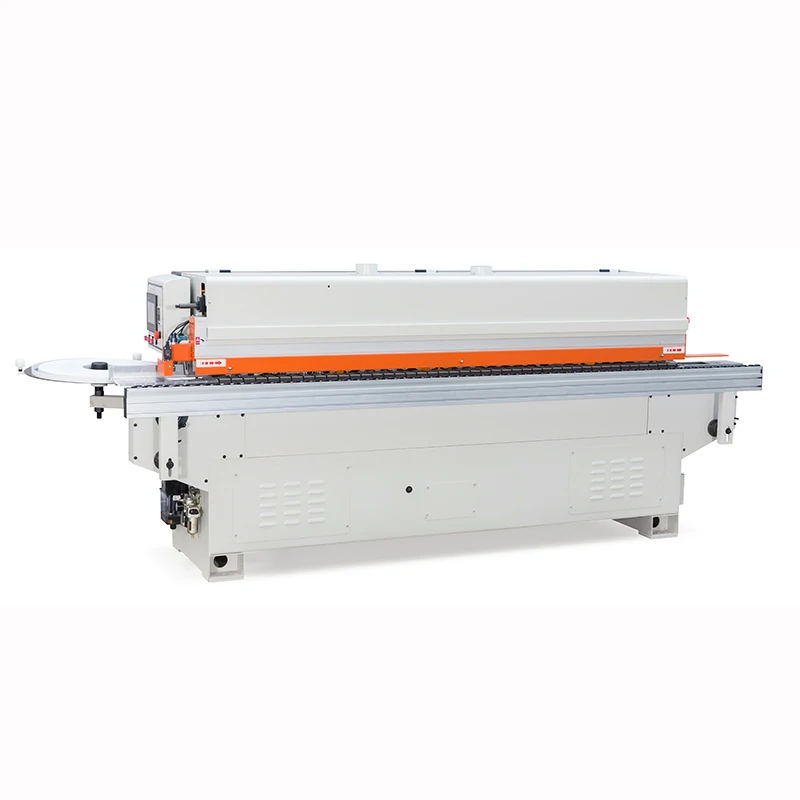

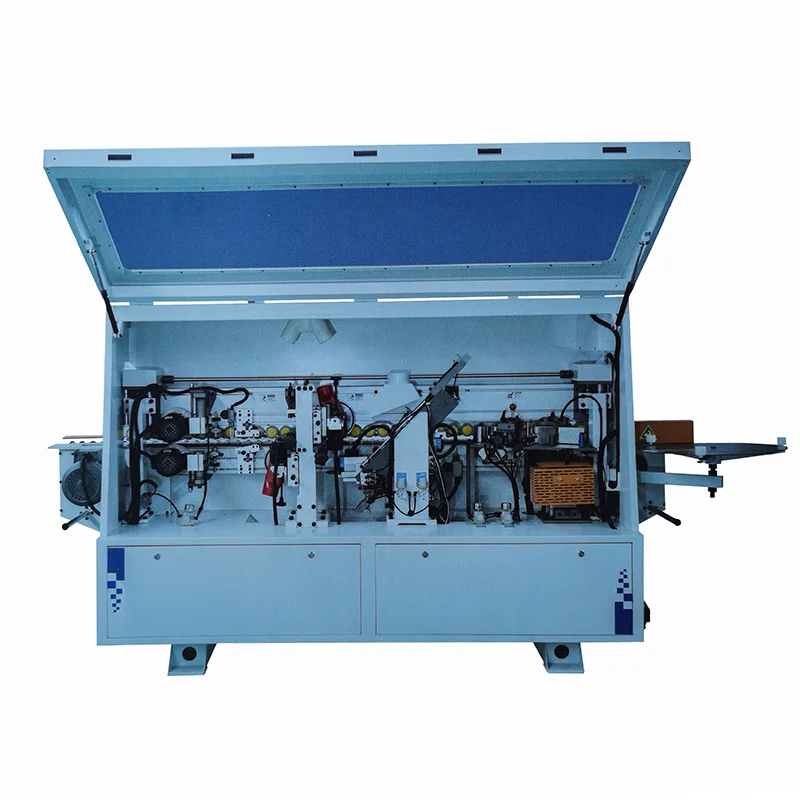

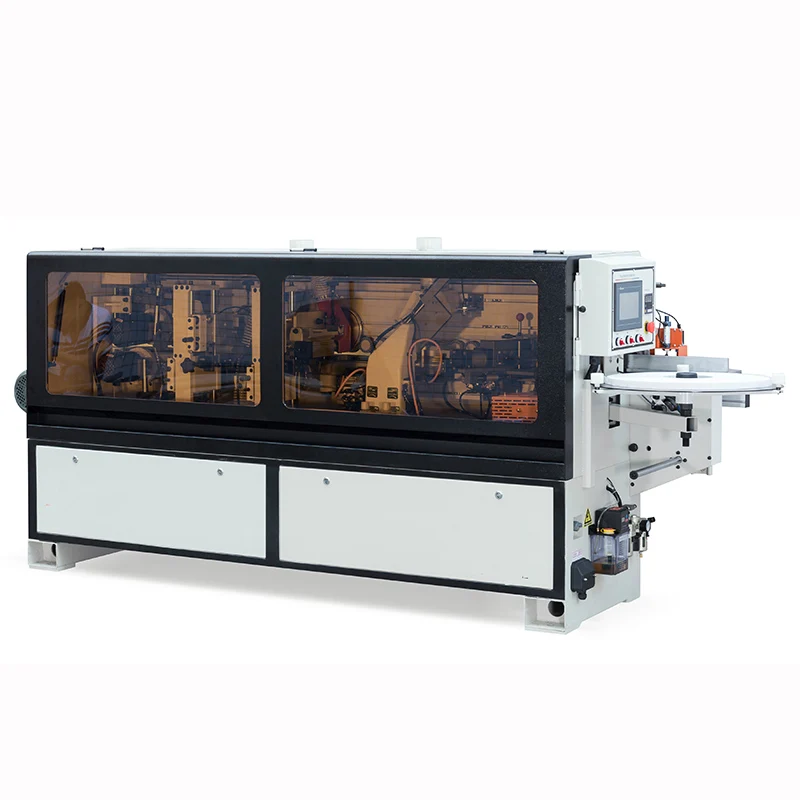

ZDS280 Linear edge banding machine:
Gluing.End Trimming.Fine Trimming.Scraping.Buffing.Cleaning
1. Small size and complete functions.2. Light touch computer display control.3. Rotary edge banding support disc.4. The feeding table for edge banding adopts a single table design.5. Automatic gluing device.6. Dual air pressure edge banding with pressure rollers. automatic adjustment device. simple and reliable.7. The front and rear cutting device with imported wide linear guide rail structure is adopted. which has high strength and reliable precision.
Product details

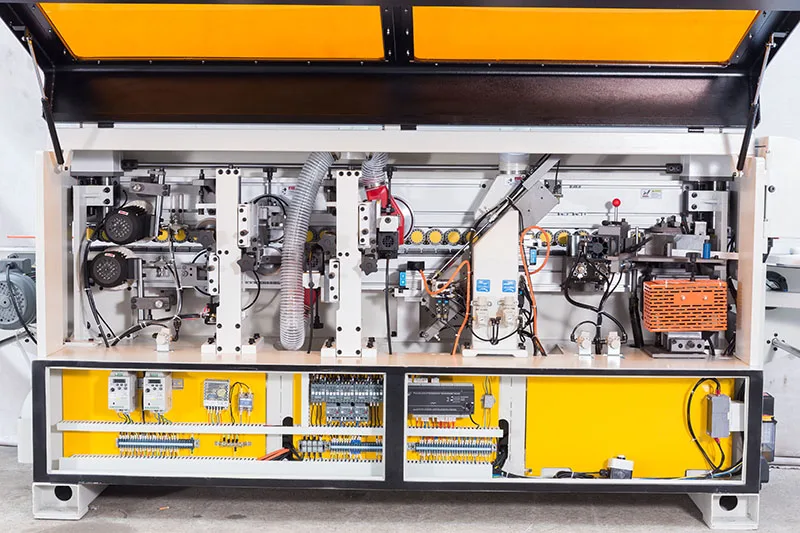

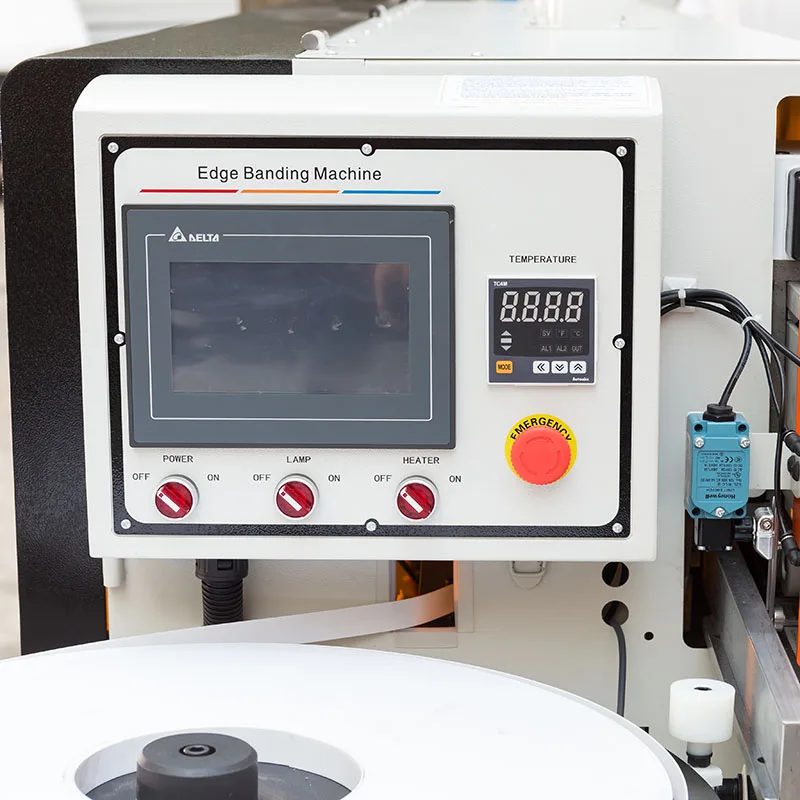

The touch screen. frequency converter and PLC all adopt Taiwan Delta. which is stable in operation and easy to operate.
Gluing
It adopts Teflon spraying process and scientific glue back design. It can make the temperature of the glue in the glue pot uniform without carbonization. and maintain good fluidity.

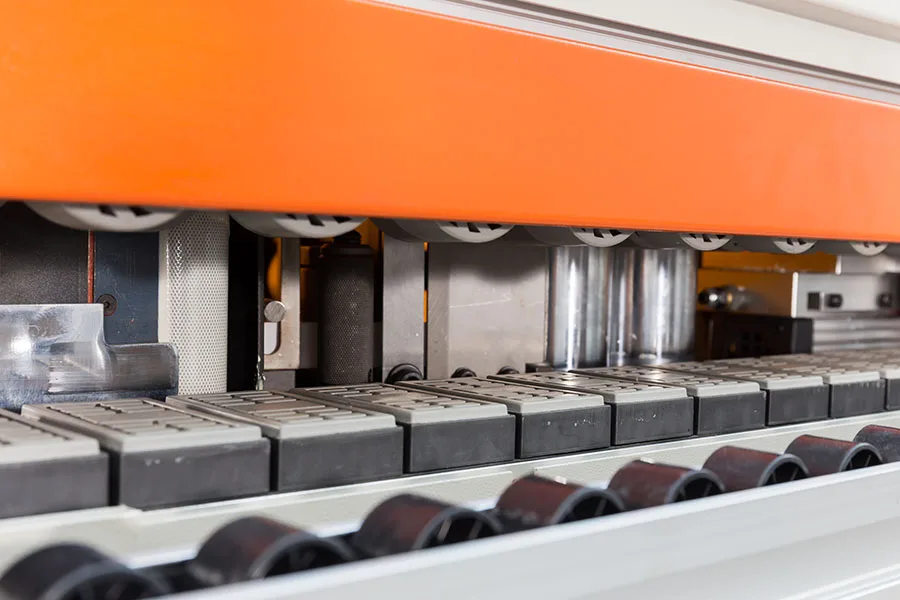

Pressing
The pneumatic design with double-wheel adjustable stroke makes the pressure adjustment easier. It can be adjusted according to the thickness of the edge banding. Improved bonding properties of glue and sidebands.
End Trimming
The air pressure balance device is adopted. which is more stable and easier to adjust. And optimize the gas path design. reduce the noise. and improve the efficiency of the equipment.
Fine Trimming
The stable frame design reduces the vibration of the tool during high-speed cutting. The design of the cutting edge is optimized to make the workpiece more perfect after edge sealing.
Scraping
Small and compact edge scraping. solve the problem of uneven trimming. At the same time. trim the excess sideband to make the sideband more beautiful.
Buffing
Up and down polishing. motor 0.37kw*2.
Contactors produced by Schneider Electric. UFC high speed motor
